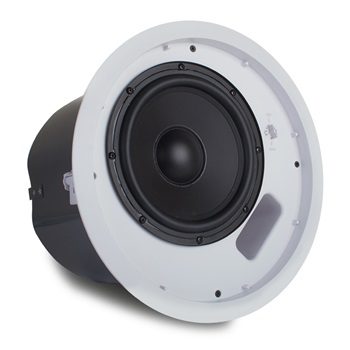

Episode® 650 Commercial Series In-Ceiling 70-Volt Subwoofer with Tile Bridge and 8 in. Woofer (Each)

Description

UL1480 Listed: Yes
UL2043 Listed (Plenum): Yes
Woofer: 8″ Vacuum-formed, mica-filled polypropylene
Tweeter: 1.4″ Copper on Aluminum Bobbin
Power Handling RMS (w) @Low Impedance: 100w
Power Handling Peak (w) @Low Impedance: 200w
70v Operation (Yes/No): Yes
70v Tap Settings: 10w, 20w, 40w, 80w
100v Tap Settings: 20w, 40w, 80w
Low Impedance Bypass?: Yes
Recommended Amplifier Power @Low Impedance: 25W
Nominal Impedance – Bypass Mode (O): 😯
Frequency Response (- 3dB): 50Hz – 120Hz
Sensitivity (2.83v @ 1m): 86 db
Dispersion Angle: Omnidirectional
Cutout Size: 12.2 in.
Mounting Depth behind 5/8″ Tile: 9.7 in.
Tile Bridge Included: Yes
Product Weight: 10.5 lbs
Warranty: Lifetime
