amx Toslink SPDIF 3 port switcher. 3 inputs, one output

Description

This SPDIF/Toslink Digital Optical Audio switcher will allow the user to select three different sources to be fed into one amplifier.

FEATURES
– Three-way optical fiber input switched into one Toslink signal output
– Audio Format Support: LPCM2.0/DTS/Dolby-AC3
– Support signal retiming
– Use Optical Fiber Cable with loss less then 0.2dB/m. Output range is 40m (125”)
– Overload protection to prevent damage when unmatched AC Adaptor is used
– No loss of signal quality
– Easy to install
– Require AC adaptor 5vDC/500ma

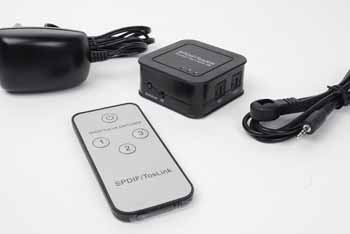

Items included with this unit:
1. One AC adaptor 5v DC
2. One user manual
3. One remote control
4. One IR cable

Specifications:

Support Audio Format LPCM2.0/Dolby-AC3
Peak wavelength 650nm
Maximum baud rate 16MBbps
Maximum range at output 40m (125ft) (use fiber optic cable with loss less than 0.2dB/m)
Maximum current during operation 100ma
AC adaptor 5v. DC
Operating temperature 0° to +40°C
Humidity range 5 to 90% RH (without condensation)
Dimensions 54 x 54 x 23.5mm
Weight 35 g
