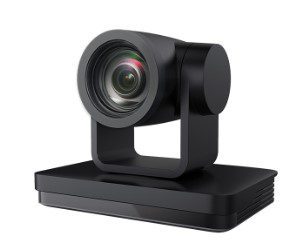

UV570S SERIES – HD VIDEO CONFERENCE CAMERA PTZ 12 x Optical Zoom, AI with Auto Tracking, HDMI, LAN(POE), USB3.0, SDI, A-IN, RS232-IN, RS232-OUT, RS422
Description
FULL HD Conferencing Camera, 1080P/2MP, 12X optical Zoom Lens, USB3.0 (audio video output)
Outputs: HDMI, SDI, LAN, USB3.0, USB2.0, CVBS
Video Format: 1080P, 60fps
Video Compression Format: LAN Interface H.265/H.264 Dual Stream Output,USB3.0 interface: Main stream supports YUY2, MJPEG, H.264, NV12, H.265
Secondary stream support YUY2, MJPEG, H.264, NV12
PTZ Parameter:
Pan/Tilt Rotation: ±170°/-30°-+90°
Package: Main Unit, Power supply, IR Controller
Dimension: 178×115.5×150.9(mm)
Weight: 1.38G”
Note:
There are limitation on the SG chipset for SDI video output
1) SDI video output no “i” format, no 1080p 50i 60i
2) SDI no OSD
Accessories:
Remote
AC & Power Supply
USB 3.0 A-B
DB-9 Mini DIN 6
Manual
Mini Pheonix – 4 Pin
