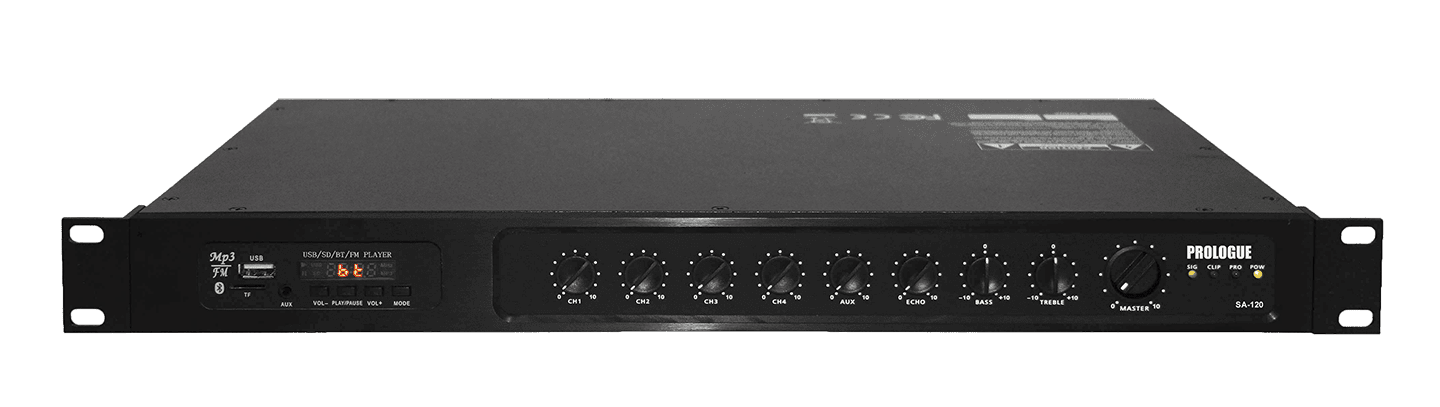

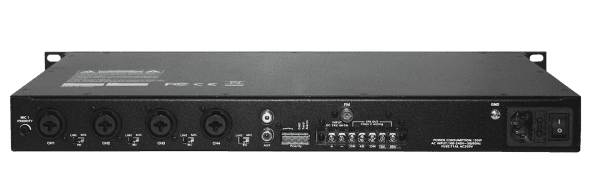

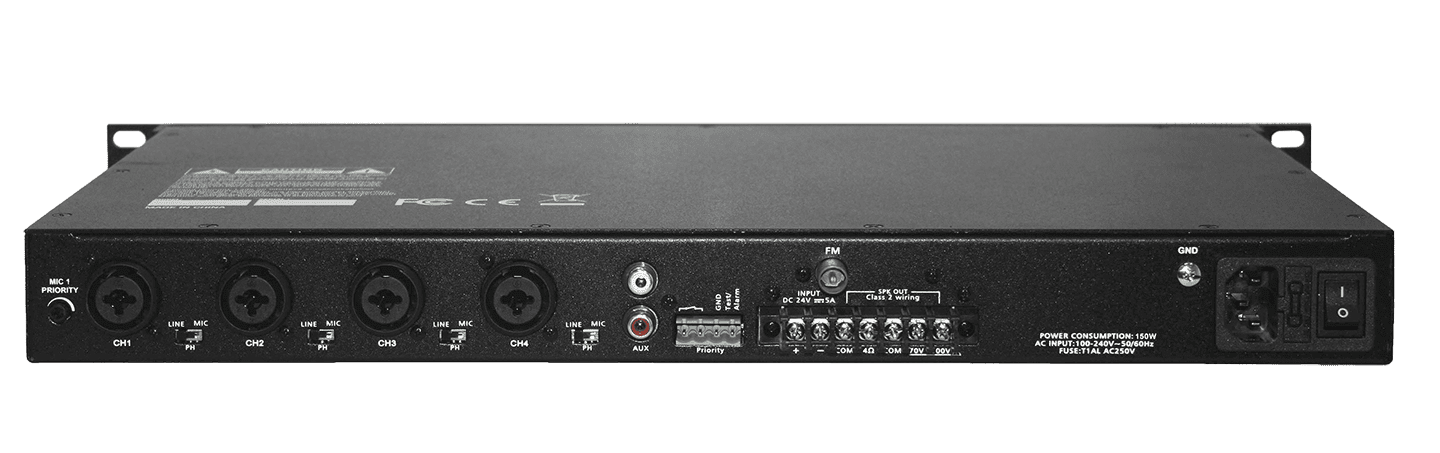

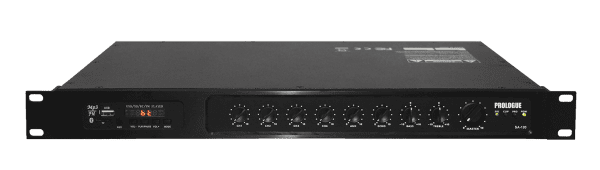

Prologue – 120w rms mono amplifier, 70v and 8 ohms outputs, 4 microphone/line inputs, 1 stereo AUX input, MP3 USB-SD Player, Tuner, Bluetooth, 1U
Description
Power Output (at 4O/70V/100V): RMS 120W
Frequency Response 80Hz – 16kHz ± 3 dB
Power Supply AC: 100~240V 50/60Hz, DC 24V
Input / Sensitivity MIC: -40dBv balanced
Line: -10dBv balanced
AUX: -10dBv unbalanced
Phantom voltage 18V Line
THD 65dB
Line > 75dB
AUX > 75dB
Output (O) 4O
Output (V) 70V, 100V
Controls 4 INPUT volume, 1 AUX volume, 1 Echo level, 2 Treble / Bass, 1 MASTER volume, Priority level
BGM Module MP3 USB-SD player / FM tuner / Bluetooth
Dimension (W x D x H) 483 x 281 x 44 mm (19.02’’ x 11.06’’ x 1.73’’)
Weight 4.9 kg
