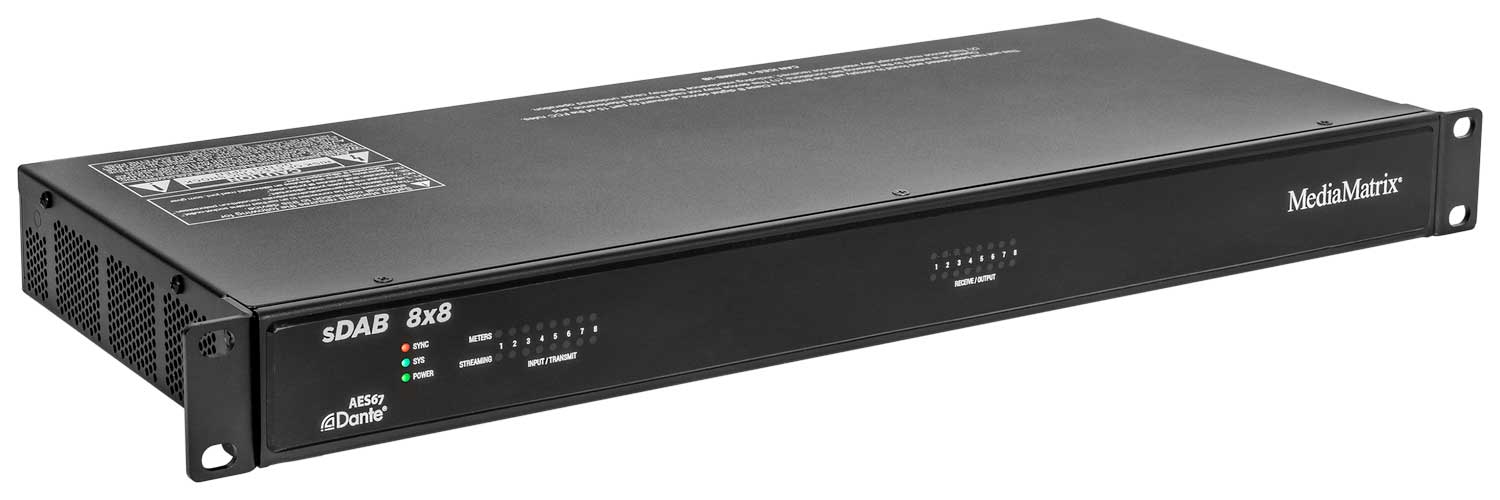

MEDIA MATRIX – sDAB 8 x 8 Networkable Digital Audio Bridge

Description

Features:

• Inputs: 8 x Mic/Line

• Outputs: 8 x Line

• Supports Dante audio-over-IP with AES67 interoperability

• Dante Domain Manager ‘DDM’ ready

• 44.1, 48 or 96 kHz sample rates @ 32bit A/D and D/A conversion. (AES67 @ 48 kHz only)

• Balanced microphone/line level inputs with level range of -60 to +24dBu

• Switchable +48V phantom power on each input

• Balanced line level outputs 0 to +24dBu

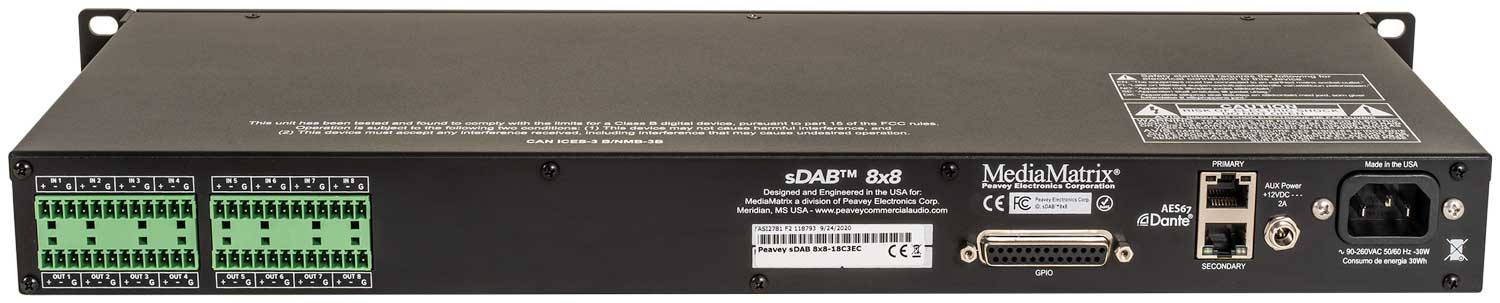

• 3.81mm Euroblock connectors with individual plus (+), minus (-) and ground (G) for each audio connection

• DB-25 GPIO connector supports optional GPIO-25 DIN rail mounting system

• RGB front panel LEDs provide per channel metering, power, system and audio streaming status

• Supports MediaMatrix nWare software suite for monitoring and control

• Dual RJ-45 network jacks can be operated in redundant or switched mode

• Built-in universal 90-260VAC 50/60Hz power supply @ 60W maximum

• Optional auxiliary +12VDC power supply provides redundancy via locking 2.1mm jack
