Infobit – iTrans E100HC HDMI 4K60 HDMI/USB-C over HDBaseT 3.0 Extender (100m) with USB 2.0

Description

iTrans E100HC – 18Gbps HDMI/USB-C over HDBaseT 3.0 Extender (100m) with USB 2.0



Compliant with HDCP 2.3, 18Gbps video bandwidth

HDBaseT 3.0 VS3000 chipset-based design

Support video resolution up to 4K2K@60Hz (YUV 4:4:4) as specified in HDMI 2.0b

4K60/4K30/1080P signal transmission distance up to 328ft/100m via a single CAT6A/7 cable (HDBT Standard Mode)

1080P 8bit signal transmission distance up to 492ft/150m via a single CAT6A/7 cable (HDBT Long Reach Mode)

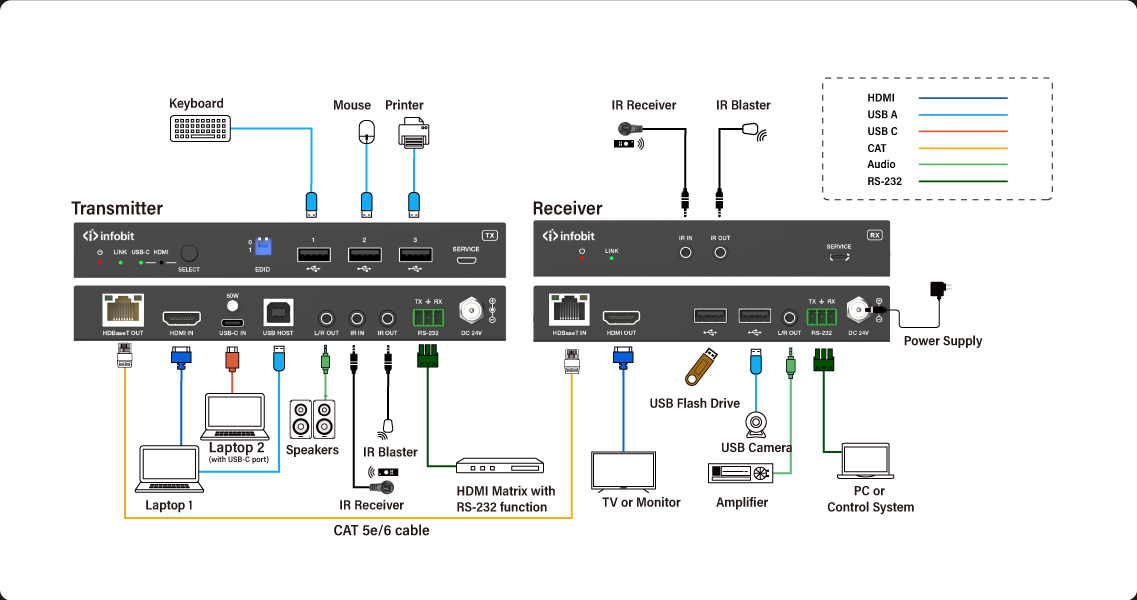

TX features with 1x HDMI input, 1x USB-C input, 1x HDBT output, 1x USB 2.0 host and 3x USB 2.0 clients

RX features with 1x HDMI output, 2x USB 2.0 clients

USB-C and HDMI signal inputs support auto or manual switching mode

Auto switching supports HDMI 5V or signal detection selection

USB-C supports DP-ALT mode for A/V, USB 2.0 data, and power charging up to 60 watts

TX/RX USB-A client ports VBUS on or off depending on USB host is connected or not

HDR, HDR10, HDR10+, Dolby Vision LLM and HLG pass-through

4K to 1080p downscaling features on HDMI output, no frame rate conversion

Both TX and RX support analog audio de-embedding

Support bi-directional IR signal pass-through, USB 2.0 signal transmission

Advanced EDID management

Each USB-A port provides power up to 5V/500mA

Support bi-directional 24V POC, with a POC switch

RS-232 signal pass-through and guest-mode control
