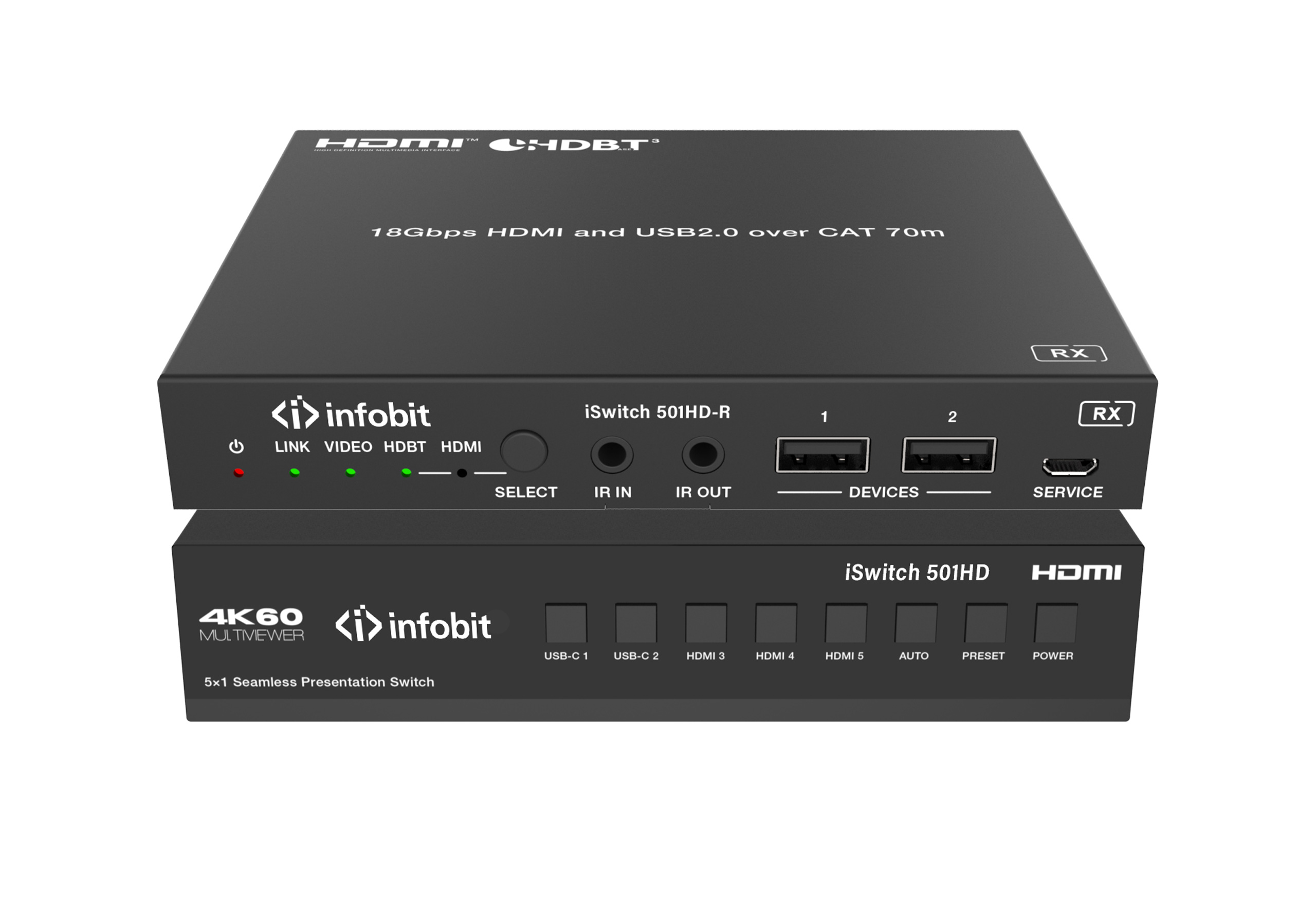

Infobit – iSwitch 501HD 4K60 5×1 Presentation Switcher HDMI and USB C IN, HDMI and HDBaseT OUT, with Dante.

Description

iSwitch 501HD

+ HDMI 2.0b, HDCP 2.2 and DP 1.2 compliant
+ Support 18Gbps video bandwidth
+ Support video resolution up to 4K@60Hz 4:4:4
+ Uncompressed 4K60 over HDBT 3.0 up to 132ft/40m via single CAT6A (F/FTP) cable
+ Uncompressed 1080P&4K30 over HDBT 3.0 up to 230ft/70m via single CAT6A (F/FTP) cable
+ Up to 5 categories of multiview display modes: Single/PIP/PBP/Triple/Quad
+ Support 5×1 seamless switching (single screen) and fast switching (multiview) function
+ Input: 2x USB-C, 3x HDMI, 1x Analog audio, 1x Dante 2ch
+ Output: 1x HDMI and 1x HDBT mirrored, 1x Analog audio, 1x Dante 2ch
+ HDMI and HDBaseT (PoE) outputs (Mirrored)
+ Dante 2×2 audio input and output
+ USB-C supports DisplayPort Alt mode for A/V, USB 2.0, 100M Ethernet and 60W charging
+ Local USB 2.0 KVM switching and extending USB 2.0 over HDBT 3.0
+ Signal input supports manual switching and automatic switching modes
+ Support analog/Dante audio embedding, analog/Dante audio de-embedding output
+ CEC/RS-232 control external devices ON/OFF
+ Advanced EDID management
+ Flexible control via front panel buttons, IR remote, RS-232, TCP/IP or Web GUI
+ Support standard PoE power supply (TX_PSE, RX_PD)
