Infobit – iSwitch 265TR 4K60 AV over IP transceiver, KVM and RS232

Up to 4K60Hz (4:4:4), 18Gbps video bandwidth, HDMI 2.0b, HDCP 2.2

Audio formats LPCM 2.0CH 48kHz

Transceiver design of encoder and decoder, fiber and copper dual-mode

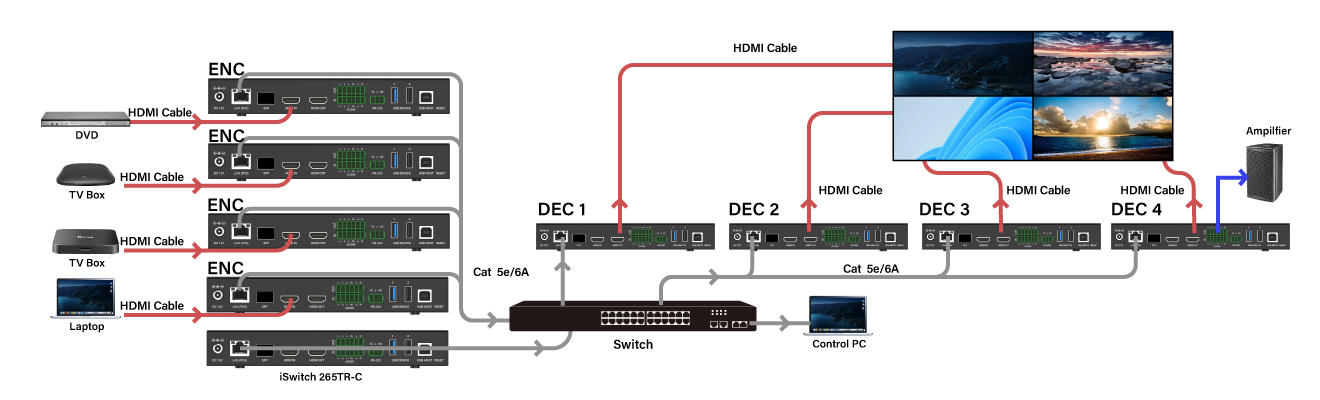

Images roaming: a unit as a decoder can process up to 16 signals, enabling arbitrary windowing, roaming, overlaying, and videowall

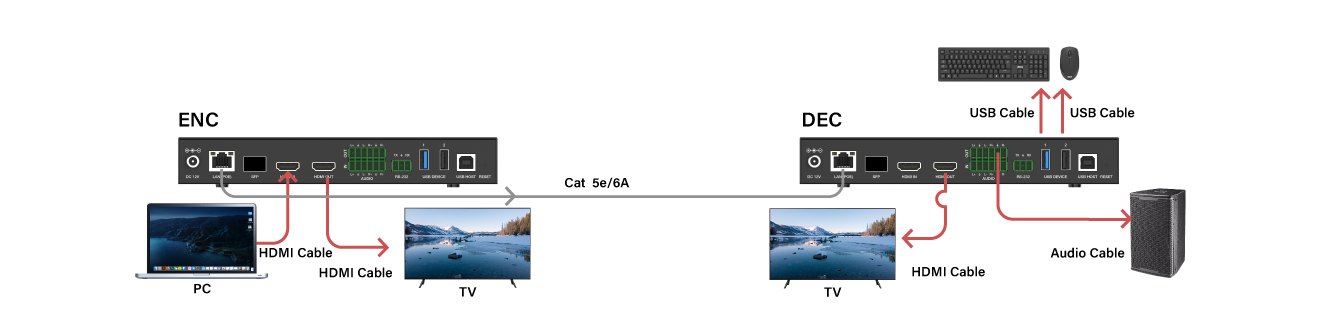

Supports KVM

Universal H.264/265 protocol, supporting IPC access and seamless integration with security cameras

Support high-definition background image (both video and picture are available), as well as multi-screen videowall

Support scrolling subtitles and character overlay

Support point-to-point signal extension

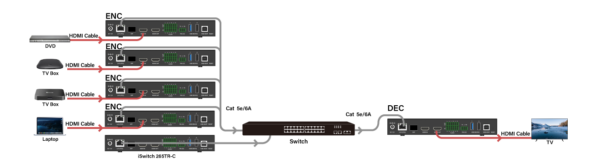

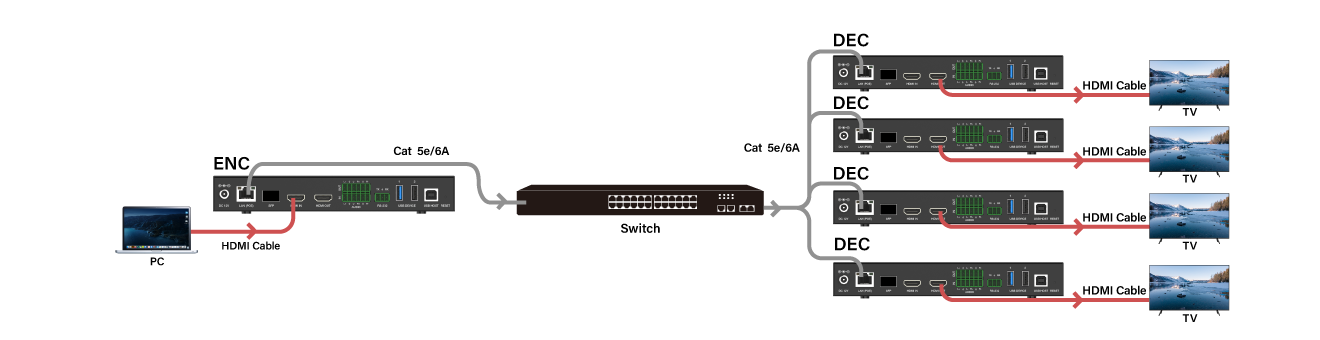

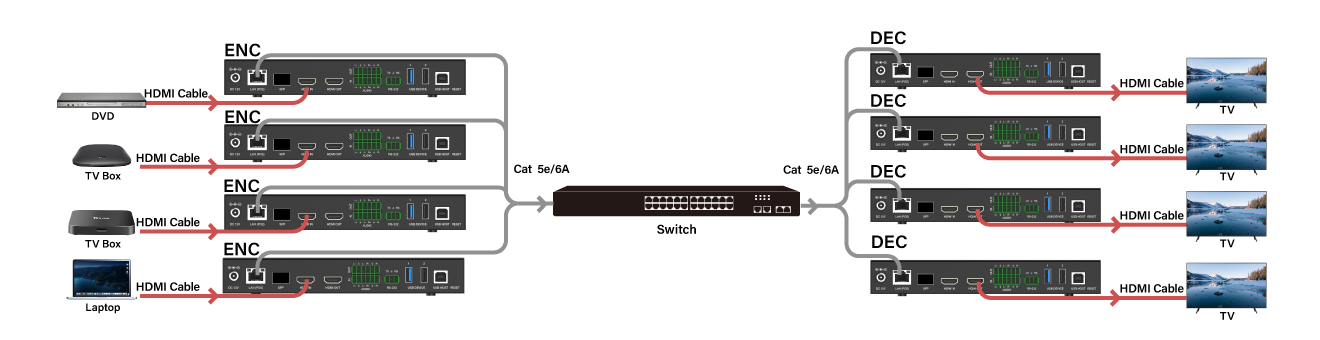

Support signal distribution, multicast mode, matrix, and video wall functions over a 1G Network Switch

Integrated central control over RS-232, APP on portable devices available

Support user rights management

Flexible control via KVM, APP, and Control Server

Standard POE supported (802.3af Class 3, PD mode)

The encoder supports HDMI loop-out

The encoder supports audio embedding and de-embedding

Comprehensive visual interaction mode, signal source, large screen status, scene preview, and environmental visualization control
