Infobit – iSPEAKER DAC6S Ceiling Speaker 60W, Dante version.

Description

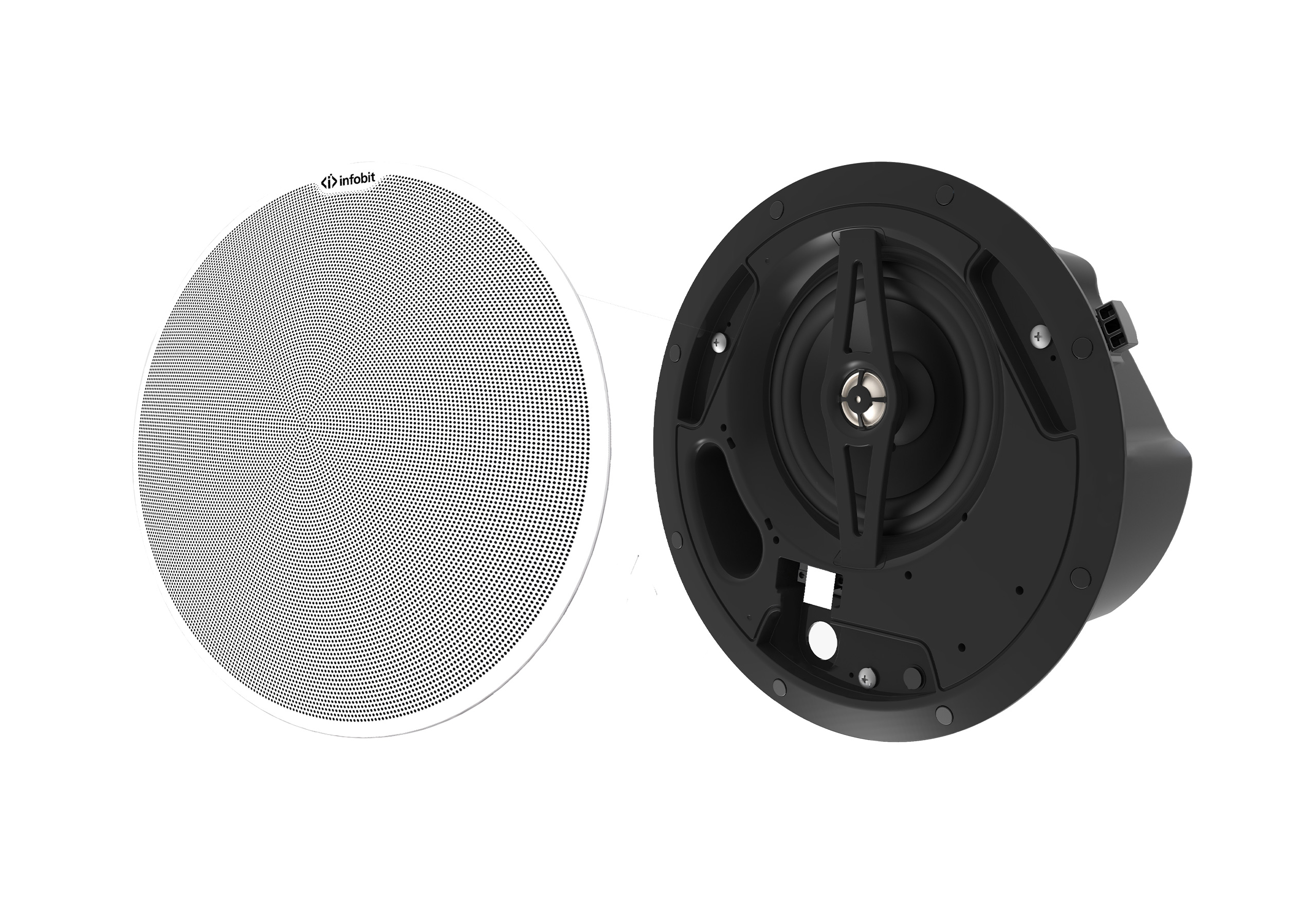

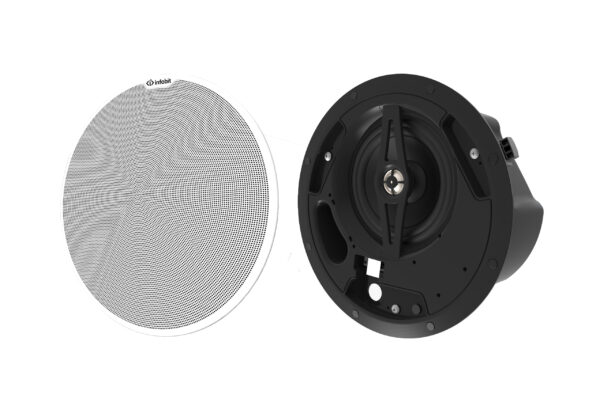

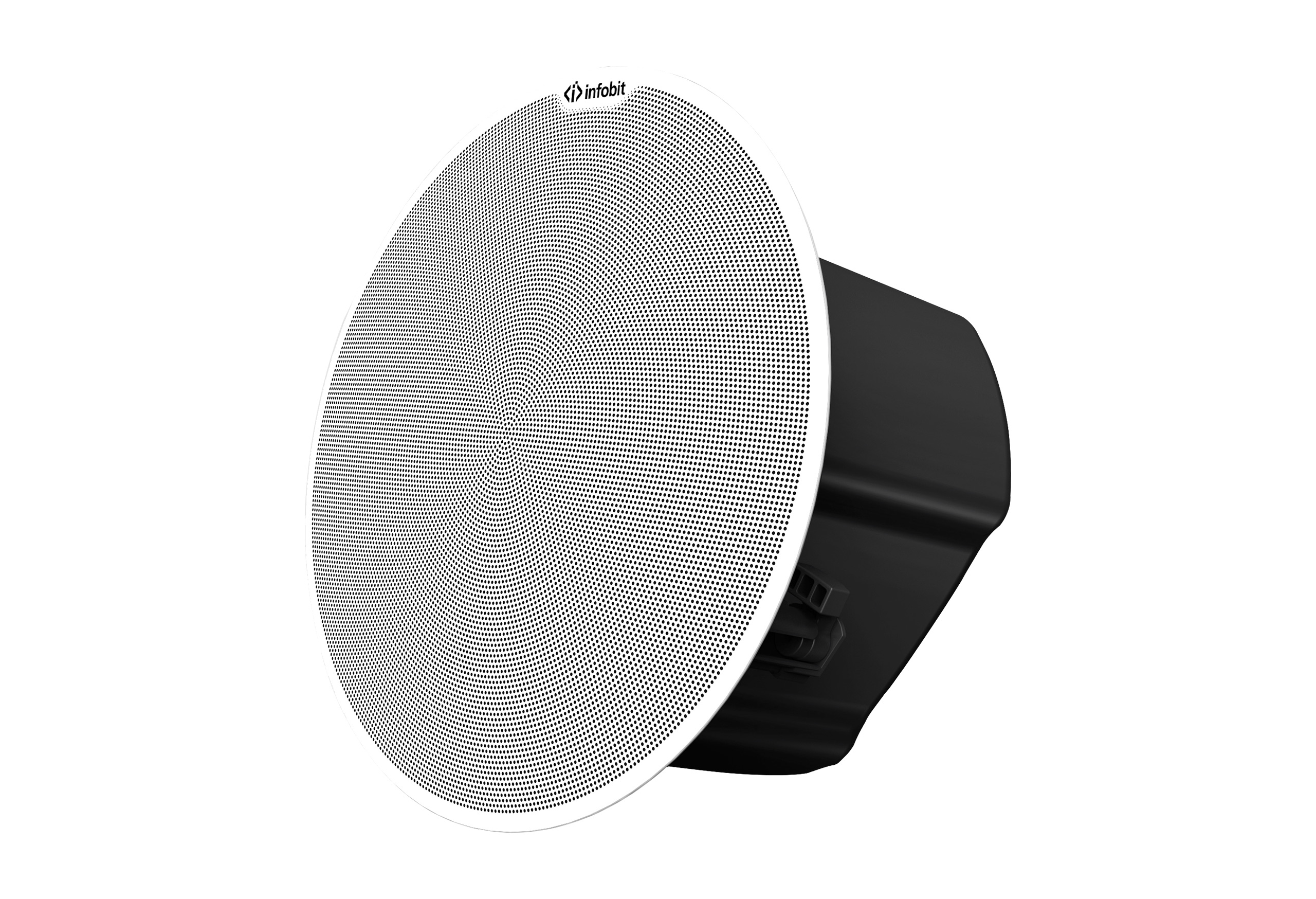

iSpeaker DAC6S – Dante Ceiling Speaker 6.5”

The 6.5-inch coaxial unit has a sensitivity of 95dB and an output power of 60W. It has high
sound pressure level output and large dynamic response. Front-out wiring design facilitates
system construction. Designed with 8x N42 high-strength magnets to install the grille, it can

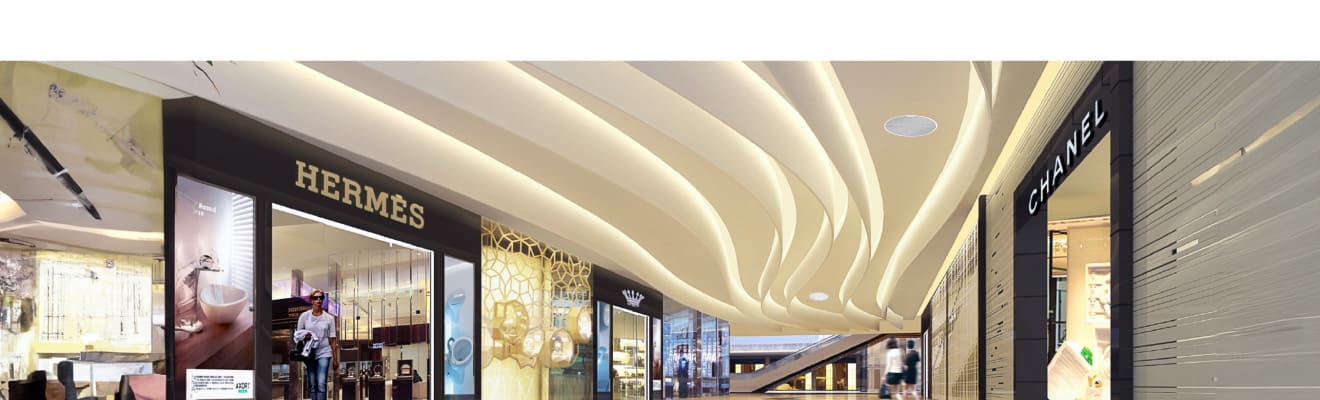

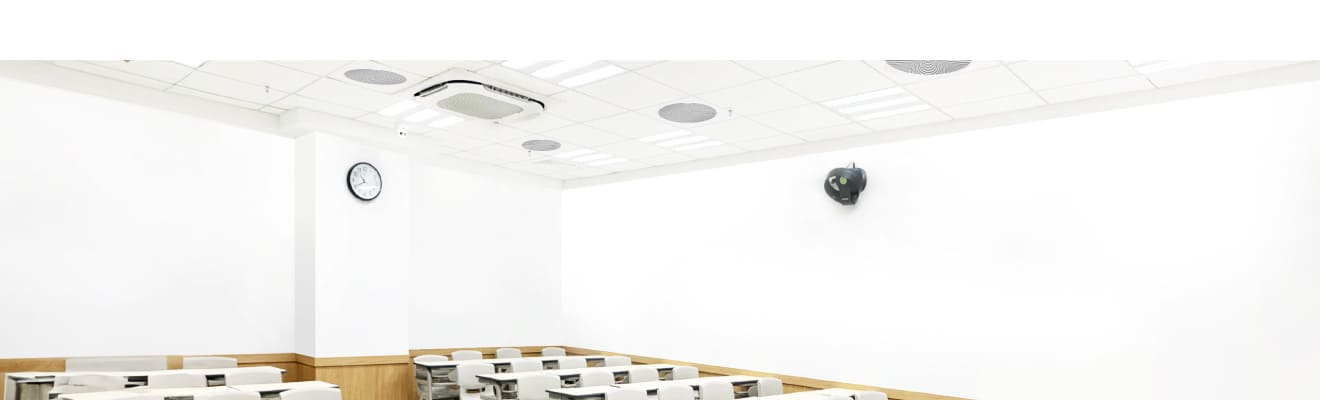

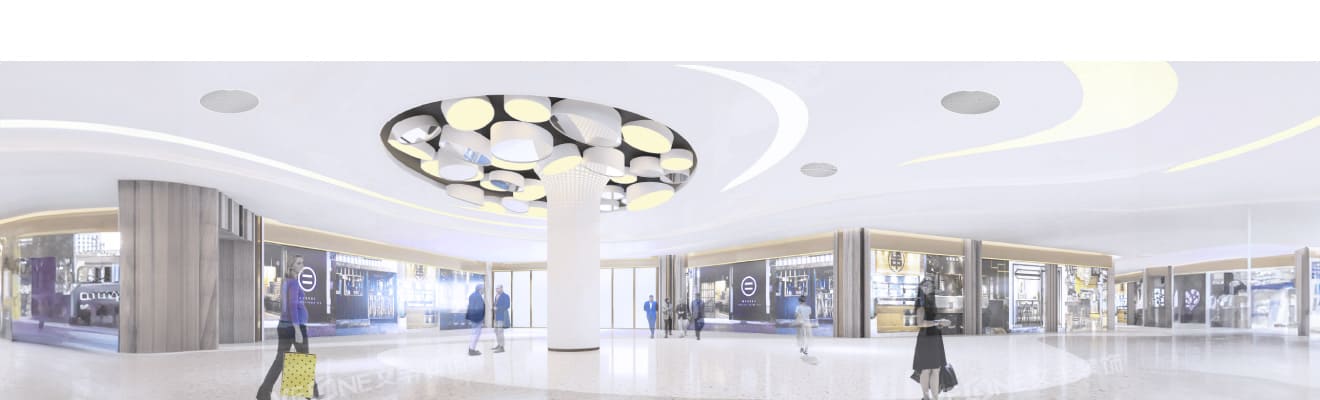

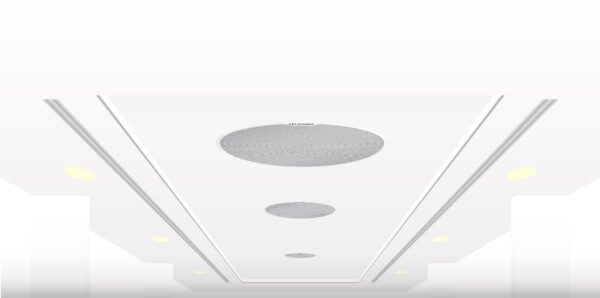

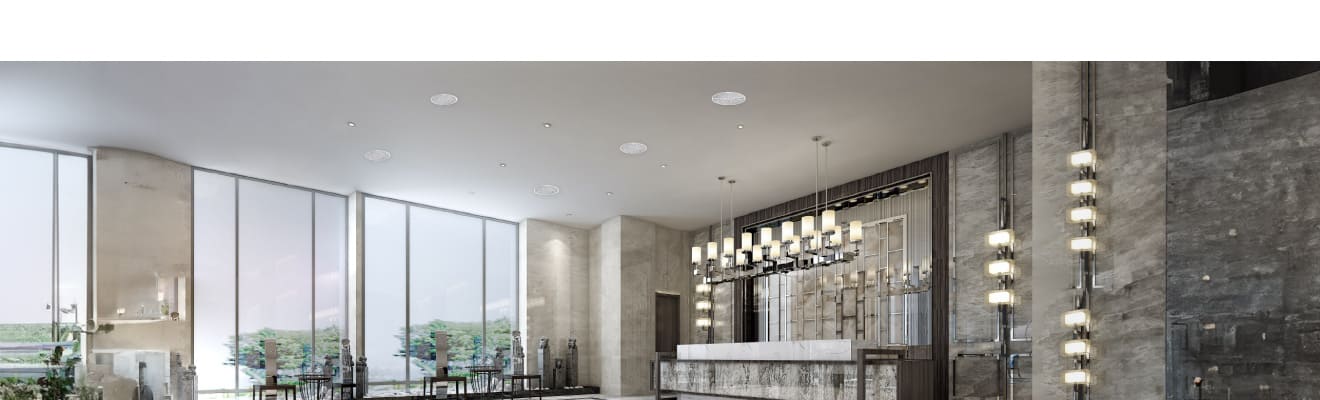

be installed in a narrow ceiling spaces and suitable for a wide range of applications

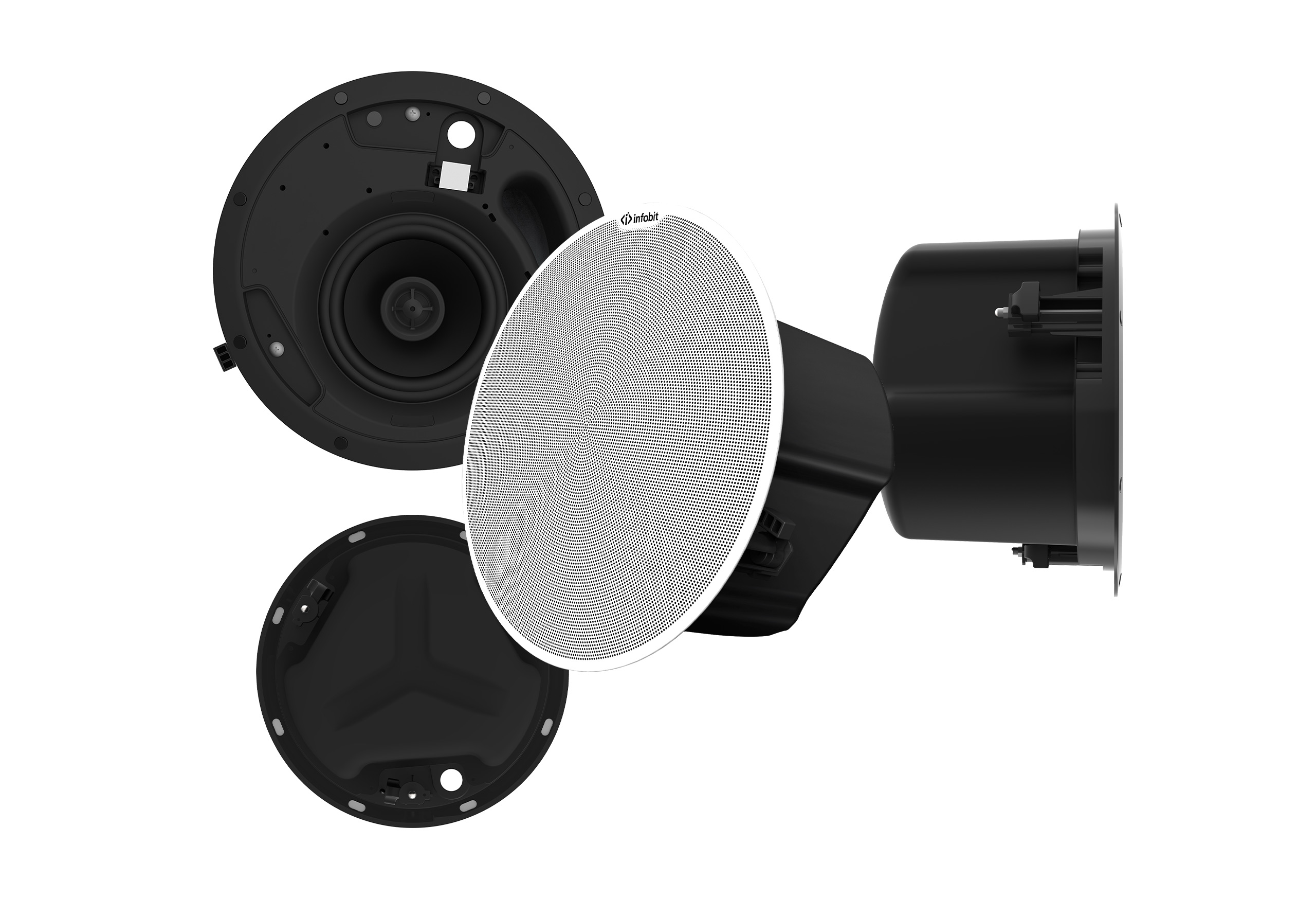

Structure: 1×6.5″+1×1″ dome, coaxial design.
Rated Impedance: 8 ohm
Rated power: 60W
Effective frequency range: 75Hz~20KHz
Sensitivity level: (1m/1W) 93dB
Sound pressure level: In the specified frequency band: 110dB

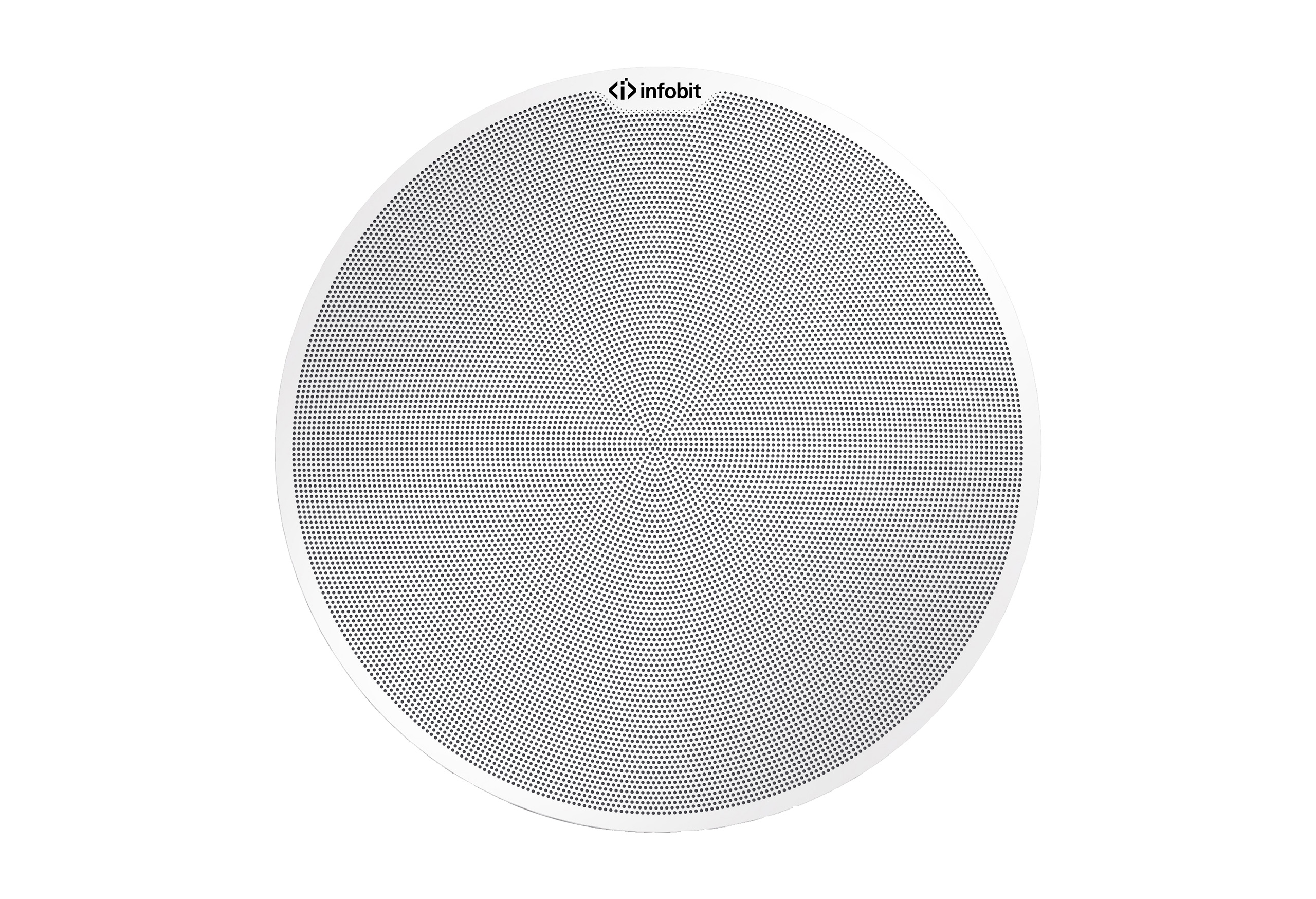

Net cover material: Metal mesh
Back shell material: Iron
Installation dimension: Total height: 197mm
Embedded depth: 176mm
Installation thickness: 10-50mm
Opening diameter: 270-280mm
Speaker outer diameter: 316mm
Port: Dante RJ45 PoE
PoE 802.3af/802.3at/802.3bt
Net Weight: 4.87kg
Gross Weight: 6.4kg
