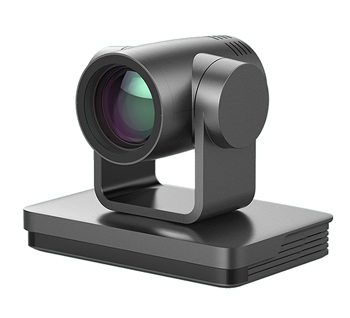

UV570 SERIES – HD VIDEO CONFERENCE CAMERA PTZ 20 x Optical Zoom,2 x optical zoom lens, HDMI, LAN(POE), USB3.0 (B Type, compatible with USB2.0), SDI,

Description

Camera Parameter
Focus 5.2 — 98mm
FOV 3.2° (N), 56° (W)
Aperture Value F1..5 – F3.0
Effective Pixels 2.07, 1/2.8-inch high-quality CMOS sensor
Video Format: HDMI/SDI: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50, 1080P59.94, 1080P29.97, 720P59.94
USB3.0: main stream FYUY2/NV12: 1920~1080/1280~720/1024~576/800~600/800~448/640~360/640~480/480~270/320~180@30/25/20/15/10/5fps
MJPG/H264:1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps;
Sub-stream FYUY2/NV12: 1920~1080/1280~720/1024~576/800~600/800~448/640~360/640~480/480~270/320~180@30/25/20/15/10/5fps
MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480/480×270/352×288/ 320×240@30/25/20/15/10/5fps
Minimum illumination 0.5Lux(F1.8, AGC ON)
DNR 2D & 3D
AWB Automatic, manual, one-key white balance, specified color temperature
Focus mode Automatic, manual, one-key focus
Exposure mode Auto, manual, shutter priority, aperture priority, brightness priority
Iris value F1.8 — F11¡¢CLOSE
Shutter Speed 1/25 — 1/10000
BLC on/off
Dynamic range Off, 1 — 8
Image adjustment Brightness, chroma, saturation, contrast, sharpness, black and white mode, gamma curve
SNR >=Ý50dB
Product Interface HDMI, LAN(POE), USB3.0 (B Type, Compatible with USB2.0), SDI, A-IN, RS232-IN, RS232-OUT, RS422 (Compatible with RS485), Rotary Switch, DC12V Power
Video Encoding Format: LAN Interface: Support main stream and sub-stream H.265AH.264, USB3.0 Interface: main stream support YUY2, MJPG, H264, NV12
Audio Input Interface: Dual channel 3.5mm linear input
Audio output interface: HDMI, SDI, LAN, USB3.0
Audio Compression: AAC, MP3, G.711A
LAN interface: 10M/100M/1000M adaptive Ethernet port, support POE power supply, support audio and video output
Network Protocol: RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, Support remote upgrade, remote restart, remote reset
Control interface: RS-232-IN, RS-232-OUT, RS422 compatible with RS485
Serial communication protocol: VISCA/Pelco-D/Pelco-P; support baud rate 115200/38400/9600/4800/2400
USB communication protocol: UVC (video communication protocol), UAC (audio communication protocol)
Power interface HEC3800 Power socket (DC12V)
Power adapter Input AC110V-AC220VG output DC12V/2.5A
Input voltage DC12V}10%
Input currency <1A
Consumption <12W

PTZ:
Pan rotation -170° — +170°
Tilt rotation -30° — +90°
Pan speed 0.1°/s — 100°/s
Tilt speed 0.1°/s — 45°/s
Preset speed Pan 100°/s, Tilt 45°/s
Preset quantity: Maximum 255 preset positions can be set(10 via remote controls)

Storage temperature -10° — +70°
Storage humidity 20% — 95%
Working temperature -10° — +50°
Working humidity 20% — 80%
Dimension 181mm~115mm~149mm
Weight 1.15kg
Environment Indoor

Standard accessories: Power adapter, RS232 control line, USB3.0 connection line, remote control, manual, warranty card & certificate

Does not support i format resolution output (example 1080i/60, 720i/50, etc).
