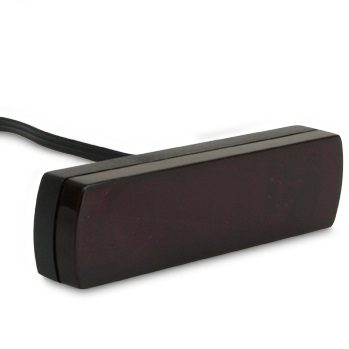

Episode® Electronics Surface Mount Plasma/LED-Proof IR Sensor with LED Feedback

Description

Episode® Electronics Surface Mount Plasma/LED-Proof IR Sensor with LED Feedback
This surface mount IR receiver packs the most desired features into a compact, easy-to-hide form factor. Its fine-tuned IR frequency is now between 30-60kHz, so your signal is always on and free from pesky interference. Plus, it’s resistant to plasma/LCD display interference and supports broadband IR and compressed codes, meaning that it can handle even the toughest devices – like AT&T U-verse boxes.

Universal Acclaim
This sensor works with virtually all A/V components and remote controls – even AT&T U-verse! This is thanks to wideband IR capability (30-60kHz) and support of RCMM compressed codes.

Advanced IR Filtering Technology
In addition to blocking common interference from plasma and LCD displays, it is also resistant to sunlight, Compact Fluorescent Lamps (CFL), Electro-Magnetic Interference (EMI), and Electrostatic Interference (ESI). Best of all, it has the « smarts » to do all this without impacting reception and performance.

Going The Distance
This Episode IR receiver features dual diodes for long-range reception up to 40 feet and off-axis response up to 30 degrees in any direction.
NOTE: IR distance is dependent on remote strength and ambient noise conditions.

Compact Size
This low-profile IR receiver is the perfect fit to newer flat panel LCD TVs. At only 1/3″ deep and with a solid black finish, it is able to « hide » in plain sight.

Talkback LED
A talkback LED blinks when receiving IR or interference. This is ideal when troubleshooting and is equally as valuable to the end-user as visual confirmation that the IR is being received.

Integrated Wire Channel
Located on the back of the IR receiver is a recessed channel that keeps the wire tucked in and allows it to exit from the left, right, or straight through the back.

Adhesive Backing
With its peel and stick adhesive backing, this compact IR receiver can easily be applied to the front of a flat panel display, cabinet or just about anywhere.

Specifications
Power: +12VDC @ 25MA
Maximum recommended cable length: 1000′ with CAT 5 cables
Carrier frequency acceptable range: 30khz to 60khz
Control range: 4′ to 40′ without speaker grille
2′ to 28′ with speaker grille
*Actual range depends on signal strength and ambient noise conditions.
Control angle: 0+/- 45° off axis
Dimension: 0.68″ H x 2.55″ W x 0.39″ D
