Combo 1×6 Telephone&2×6 Pwr Video Distribution w/ Pwr Supply

Description

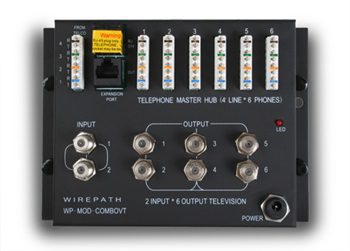

Wirepath Combo 1×6 Telephone & 2X6 Powered Video Distribution Module with Power Supply
The WP-MOD-COMBOVT allows connection of up to 4 lines for telephone to 6 rooms as well as 2 inputs for antenna to cable with 15dB of amplification for up to 6 rooms. Space-saving design allows for most basic installations to be completed easily.

Flexibility in a compact size.
The WP-MOD-COMBOVT combines 4 lines for telephone to 6 rooms with 2 inputs for antenna or cable with 15dB of gain for up to 6 rooms. The compact size is a great way to save space and still have a lot of installation flexibility.

Compatible with many systems.
The Video section is DTV capable and features a insertion loss of 0dB +/- 1 dB, isolation of 20dB and a return loss of 10dB.

Easy security integration.
The RJ-31X jack allows easy telephone integration with security systems. The expansion port allows simple and quick telephone additions using the WP-TELEXP8.

Fits most cans.
Universal mounting capability allows you to use this in almost every structured wire can.

Industry standard simplicity.
Telephone terminals are color-coded for fast and easy punch down.

Specifications:
6.5″ (with tabs) x 4.75″ x 1″ (Housing)
Power Supply Included
RoHS Compliant
