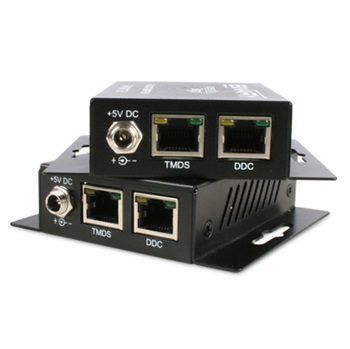

Binary™ Two Cat 5e/6 HDMI 1.3 Extender (130 Ft.)

Description

Specifications
Specifications Transmitter Receiver
Video Bandwidth Single-link 225MHz (6.75Gbps)
Video Support 480i / 480p / 720p / 1080i / 1080p up to 36-bit color
HDMI over UTP Transmission (24-bit) Full HD (1080p)-130ft (CAT5e) / 165ft (CAT6)HD (720p/1080i)- 164ft (CAT5e) / 200ft (CAT6)
Audio Support Surround sound (up to 7.1ch) or stereo digital audio
Signal Equalization 8-level digital control at RX
Input TMDS Signal 1.2 Volts (peak-to-peak)
Input DDC Signal 5 Volts (peak-to-peak, TTL)
Input 1x HDMI 2x RJ45
Output 2x RJ45 1x HDMI
HDMI Connector Type A (19-pin female)
RJ45 Connector WE/SS 8P8C 2 LED indicators
Rotary Control Switch – Signal level
Mechanical
Housing Metal enclosure
Dimensions Width: 3.6″ Height: 0.9″ Depth: 3.3″
Weight .77 lbs
Power Supply 5V 4A DC
Power Consumption 1.5 Watt (max)
Max. Recommended Length 1080i 1080p
Cat 5e 164 ft. (50 meters) 130 ft. (39.62 meters)
Cat 6 200 ft. (60.96 meters) 165 ft. (50.29 meters)
