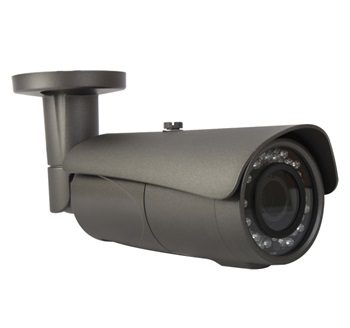

750-Series Bullet Analog Outdoor Cam,IR/Heater (650TVL|Gray)

Description

Imaging
Image Sensor 1/3″ Color Sony Super HAD II
Lens 3.7 – 12mm
Estimated Horizontal Viewing Angle 78.1° (3.7mm) ~ 28.1° (12mm)
Resolution (TVLs) 650
Effective Pixels NTSC:768(H)x494(V)
Gamma 0.45
S/N Ratio 52dB (AGC Off, Weight On)
Sync Mode Internal
Scanning System 2:1 Interlace
Auto Iris Yes
IR Range 80 ft.
Smart IR Yes
True Day / Night Yes

Technology
OSD Yes
WDR Super WDR
DNR 3D DNR
Minimum Illumination 0.03 Lux color, 0.00003 Lux Sens-up
Sense-Up Yes
Highlight Compensation Yes
Auto Gain Control Yes
Back Light Compensation Yes
White Balance Yes
Privacy Mask Yes
Motion Detection Yes
Mirror Mode Yes
Digital Zoom Yes
Image Stabilizer Yes
Parking Line Yes

Housing & Power
Weather Rating IP66
RS485 Yes
Operating Temperature ‘-40°F ~ 140°F / 80% RH *Operates to -40° when continually powered
Operating Humidity 30% – 80% RH
Power Source Main Power: 12 VDC (1A) 24VAC(500mA) – Not Included
Test Adapter: 12V DC (1A) – Not Included
Power Consumption 10.5W – 870mA
Dimensions Arm 90° – Width: 3.4″ Height: 4.72″ Depth: 9.96″
Arm Straight – Width: 3.4″ Height: 3.28″ Depth: 11.62″
Weight 1.70 lb. (770g)
