550-Series Caméra Bullet Extérieur Analogue ,IR (600 TVL|Gray)

Description

Important Notice: When powering the camera using a CCTV tester, you must connect the power via the Test Port adapter power connection – not the pigtail. In addition, the Test Port adapter power connection for this camera only uses a 12 V DC power supply. Using a 24 V AC, or other voltage power supply with the Test Port Adapter will result in damage to the camera, and possibly the power supply.

Power supplies are not included with cameras.

For compatible models, choose any of our 12V and 24V power supplies.

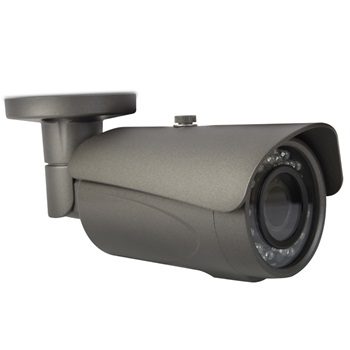

Wirepath™ Surveillance 550-Series Bullet Analog Outdoor Camera with IR (600 TVL | Gray)

If you’re looking for a go-to, solid bullet camera for your commercial applications, the WPS-550-BUL-A-GR has got you covered! Its enhanced resolution and rich feature-set will give you clearer video, while the external test port and zoom/focus dials make adjusting its image, video and OSD easier than ever. This bullet also features an exclusive Wirepath™ housing design that boasts a thicker, stronger mount bracket and wider barrel. It’s ideally suited for indoor/outdoor applications such as warehouses, retail and office buildings.

Key Features

Enhanced resolutionEasy setup with on-screen display Adjustable field of viewPerfect foreground /background contrastProtected from spraying water and dustSee in the darkEasily power over long distances Video test port for fast installation

Installation Features
External Zoom and Focus
To make this bullet as installer friendly as possible, we put the zoom/focus adjustments on the outside, meaning you can connect all your wires and get the camera completely installed before tweaking these settings. No more unscrewing the lens cap and letting in unwanted humidity every time you want to make an adjustment – just use the included hex wrench, which is the same tool used to adjust the mount bracket. Now that’s convenient!

Test Port + CCTV Tester = Easy Adjustments
Using the external video test port, you can easily adjust video and OSD settings right there at the camera with our optional CCTV tester No more running back and forth to the DVR to adjust zoom, focus or video enhancements. The included breakout cable allows you to power the camera even if there’s no power on the jobsite, and it has an OSD joystick for easy control of On-Screen Display.

Typical Applications

Commercial
Is someone peeking at privileged files? Perfect for monitoring areas with controlled access like file rooms, cash registers or for general coverage in restaurant dining areas.

Residential
Knock, knock, who’s there? Ideal for front/back door use, garages and general monitoring in outdoor locations.

Imaging
Image Sensor 1/3″ Color Sony Super HAD II
Lens 3.7 – 12mm
Estimated Horizontal Viewing Angle 78.1° (3.7mm) ~ 28.1° (12mm)
Resolution (TVLs) 600
Effective Pixels NTSC:768(H)x494(V)
Gamma 0.45
S/N Ratio 52dB (AGC Off, Weight On)
Sync Mode Internal
Scanning System 2:1 Interlace
Auto Iris Yes
IR Range 65 ft.
Smart IR Yes
True Day / Night Yes

Technology
OSD Yes
WDR D-WDR
DNR 2D DNR
Minimum Illumination 0.01 Lux color, 0 Lux IR on
Highlight Compensation Yes
Auto Gain Control Yes
Back Light Compensation Yes
White Balance Yes
Privacy Mask Yes
Motion Detection Yes
Mirror Mode Yes
Parking Line Yes

Housing & Power
Weather Rating IP66
RS485 Yes
Operating Temperature 14°F – 140°F
Operating Humidity 30% – 80% RH
Power Source Main Power: 12 VDC (1A) 24VAC(500mA)– Not Included
Test Adapter: 12V DC (1A) – Not Included
Power Consumption 5.5W 450mA
Dimensions Arm 90° – Width: 3.4″ Height: 3.82″ Depth: 8.39″
Arm Straight – Width: 3.4″ Height: 3.28″ Depth: 9.07″
Weight 1.70 lb. (770g)

Technology Overview
OSD
Optimize performance by tailoring the camera’s settings for the specific application using the on-screen menu. An RS-485 connection is available to remotely change these settings with a compatible DVR.
View the OSD

Auto Iris Lens
A built-in motor controls the amount of light that reaches the camera’s imaging sensor, allowing it to adjust to get the best picture possible in any condition. Ideal for indoor and outdoor situations where lighting conditions vary and there’s a lot of natural light.

D-WDR (Digital Wide Dynamic Range)
Provides clearer images and even lighting in applications that are simultaneously both bright and dark. This is particularly useful in areas with windows and lots of natural light.
View an example of WDR

Backlight Compensation (BLC)
Reduces silhouetting so you see foreground subjects clearly when positioned in front of a bright background light source.

Highlight Compensation (HLC)
Don’t get blinded by the light! By blocking headlights and other intensely bright areas, contrast is dramatically improved for critical areas of the image.

True Day/Night (IR Cut Filter)
For more accurate, vivid color reproduction during daytime use, an IR Cut filter is automatically moved over the lens to block unwanted IR. At night, the filter is removed to deliver maximum visibility and clear IR illumination.

Smart IR
Automatically adjusts the amount of IR LED intensity to eliminate over-exposure and evenly illuminate the subject.

2D DNR (Digital Noise Reduction)
A powerful digital signal processor (DSP) intelligently scans the image and reduces noise in low-lux conditions for a cleaner, crisper image.

Privacy Masking
Block out sensitive or privileged areas by placing rectangular blocks or « masks » over installer-defined areas.

Spécifications

Marque	Snap AV
Quantité par paquet	1 (unité)
Garantie (années)	1
